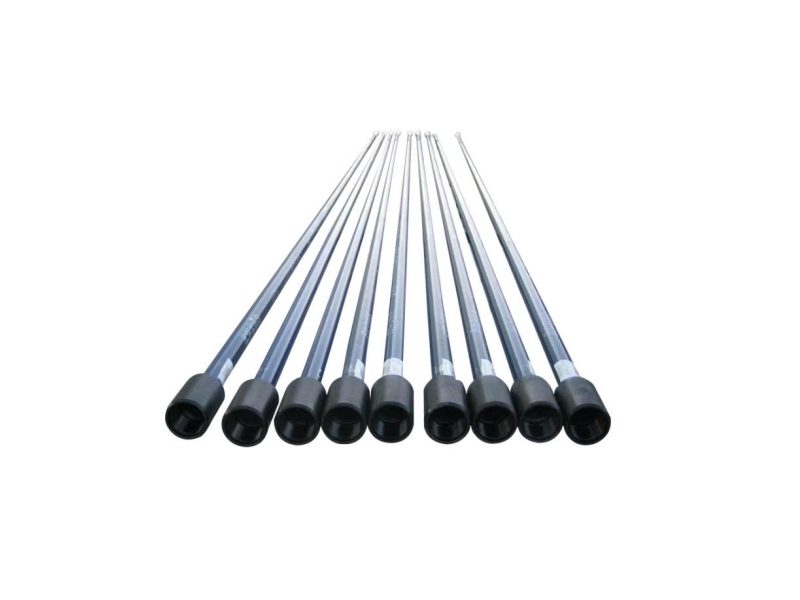

Introduction of annulus thermal recovery pump oil well:
Annulus thermal recovery pump oil well is an improved feedback type heavy oil pump, which retains the original advantages and changes the oil inlet valve to a circulation valve, which increases the flow area, shortens the oil inlet process, and thus reduces the oil inlet resistance. At the same time, the lower pump adopts a short pump barrel and a long plunger, which can effectively avoid sand jam. Annulus thermal recovery pump oil well is suitable for 7” cased wells, and 57/p38 pumps can also be used for 5 1/2” cased wells.
Advantages of heavy oil well pump:
1. Heavy oil well pump is suitable for 7-inch (7") and 5 1/2-inch (5 1/2") oil well operations, and can meet the needs of oil wells of different sizes. Whether it is a large oil field or a small oil well, the annular pump can be optimized and adjusted according to the specific conditions of the wellhead.
2. Our high volume pumping with sucker rods has been improved on the basis of the original liquid inflow design and an annular valve has been adopted. This improvement not only improves the working efficiency of high volume pumping with sucker rods, but also reduces the energy consumption of high volume pumping with sucker rods. Customers can pump more crude oil in a shorter time while reducing the load on the equipment, thereby extending the service life of the equipment and reducing maintenance costs.
3. Annulus thermal recovery pump oil well adopts a combination design of long plunger and short pump body, which greatly shortens the liquid inlet pipeline and avoids the poor operation of the oil well due to sand blockage. The short pump body design not only improves the fluid flow efficiency, but also makes the overall volume of high volume pumping with sucker rods more compact and more adaptable.
4. This design reduces the fluid resistance of the pump body and the oil inlet pipeline to a minimum, thereby improving the overall performance of the high volume pumping with sucker rods. Especially in the oil well environment with low viscosity or poor oil fluidity, high volume pumping with sucker rods can also achieve higher oil production and improve economic benefits.

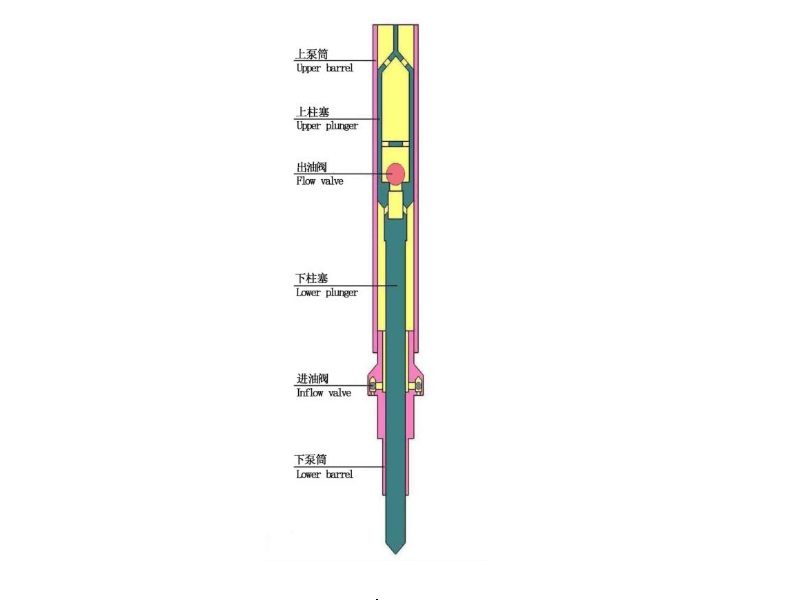

Heavy oil well pump structure diagram:
The core structure of the heavy oil well pump includes:
Upper barrel:
Upper plunger:
Flow valve:
Lower plunger:
Inflow valve:
Lower barrel:
All structures of the heavy oil well pump are modularly designed to facilitate maintenance and replacement, reducing on-site operation time and operation and maintenance costs.
Technical parameters of circulating heavy oil well pump:
Pump bore (mm ) | Length of plunger ( m ) | Length of barrel ( m ) | Range of stroke | Size of connecting tubing | Size of connecting sucker rod | Max outside diameter (mm ) | Pump constant | ||
Upper lunger | Lower plunger | Upper barrel | Lower barrel | ||||||
57/38 | 0.6~1.2 | 2.4~7.2 | 2.4~7.2 | 0.6~1.2 | 1.8~6.0 | 2 7/8 TBG | CYG19 | 142 | 1.91 |
70/38 | 3 TBG | CYG22 | 3.91 | ||||||
| 70/44 | 3 TBG | CYG22 | 3.35 | ||||||
83/44 | 3 1/2TBG | CYG25 | 5.60 4.25 | ||||||
| 83/57 | 3 1/2TBG | CYG25 | 4.25 | ||||||
