1. Project Background
In global oilfield operations, many oil wells face complex challenges regarding the production medium—specifically, corrosive environments characterized by high salinity, hydrogen sulfide (H2S), or carbon dioxide (CO2). Under these conditions, standard carbon steel pump barrels are highly susceptible to pitting and uniform corrosion, leading to reduced pump efficiency as well as the need for frequent well flushing and maintenance.
This project aimed to provide an overseas oilfield with a high-performance pump barrel solution. The client required a product that not only strictly adhered to API 11AX standards but also possessed exceptional corrosion resistance to extend the oil well's production lifecycle.
2. Challenges
Extreme Corrosive Environment: The fluids within the oil wells exhibited high acidity and high mineralization levels, making it difficult for standard metal materials to withstand long-term operation.
High-Precision Machining Requirements: The inner bore of the pump barrel required extremely high surface finish and dimensional tolerance precision (per API standards) to ensure a perfect fit with the plunger and minimize fluid leakage.
Long-Stroke Stability: Given the considerable length of the pump barrels, it was essential to ensure they remained free from deformation during deep-well operations; furthermore, the threaded connections required exceptionally strong sealing integrity.
3. Solutions

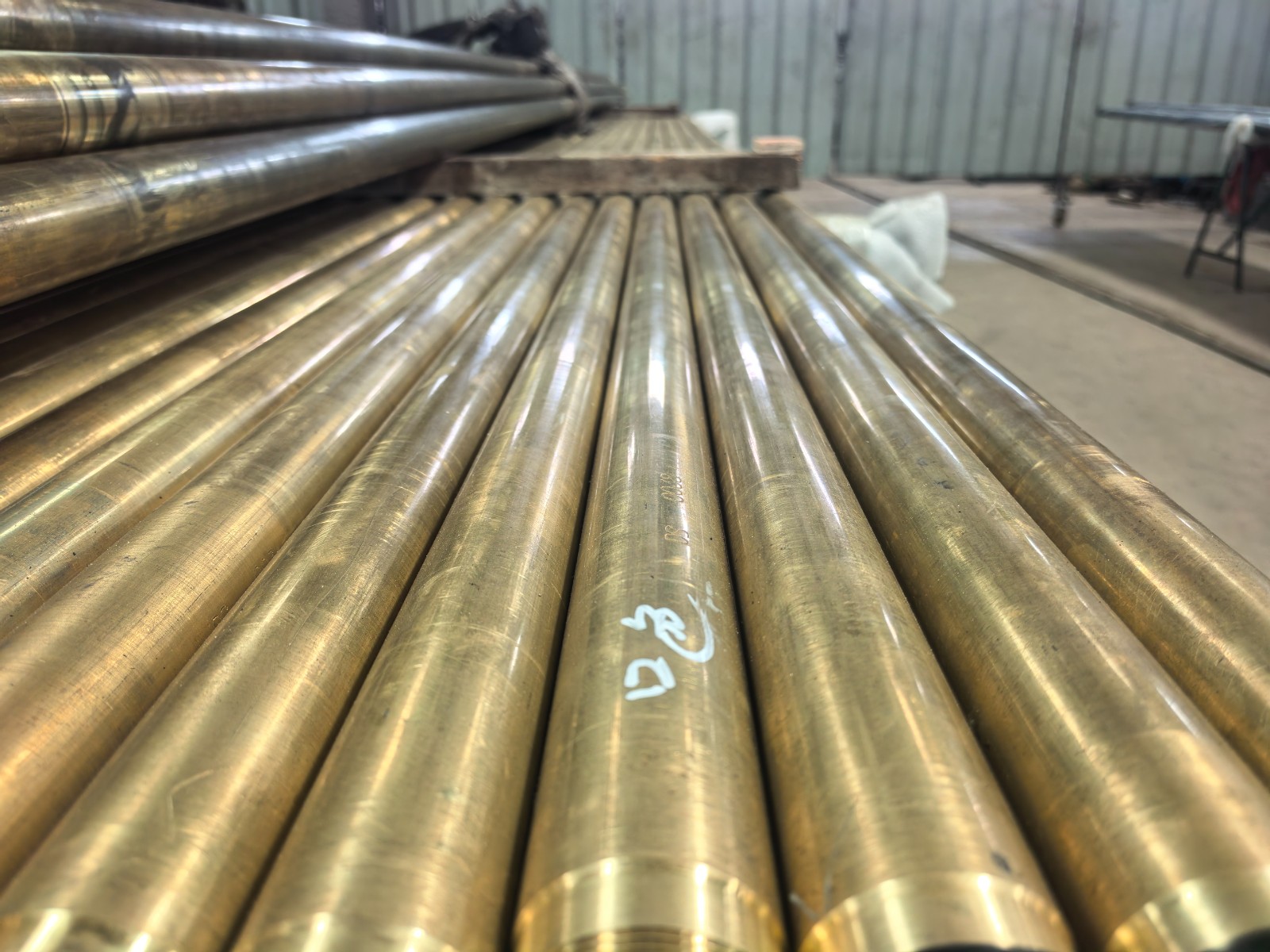

Based on the technical parameters provided by the client and an analysis of the downhole environment, our company custom-manufactured API 11AX-standard brass pump barrels tailored to their specific needs:
Material Selection: We selected a high-quality, high-strength brass/bronze alloy. Brass naturally possesses excellent resistance to electrochemical corrosion and hydrogen sulfide-induced cracking, making it an ideal choice for handling corrosive fluids.

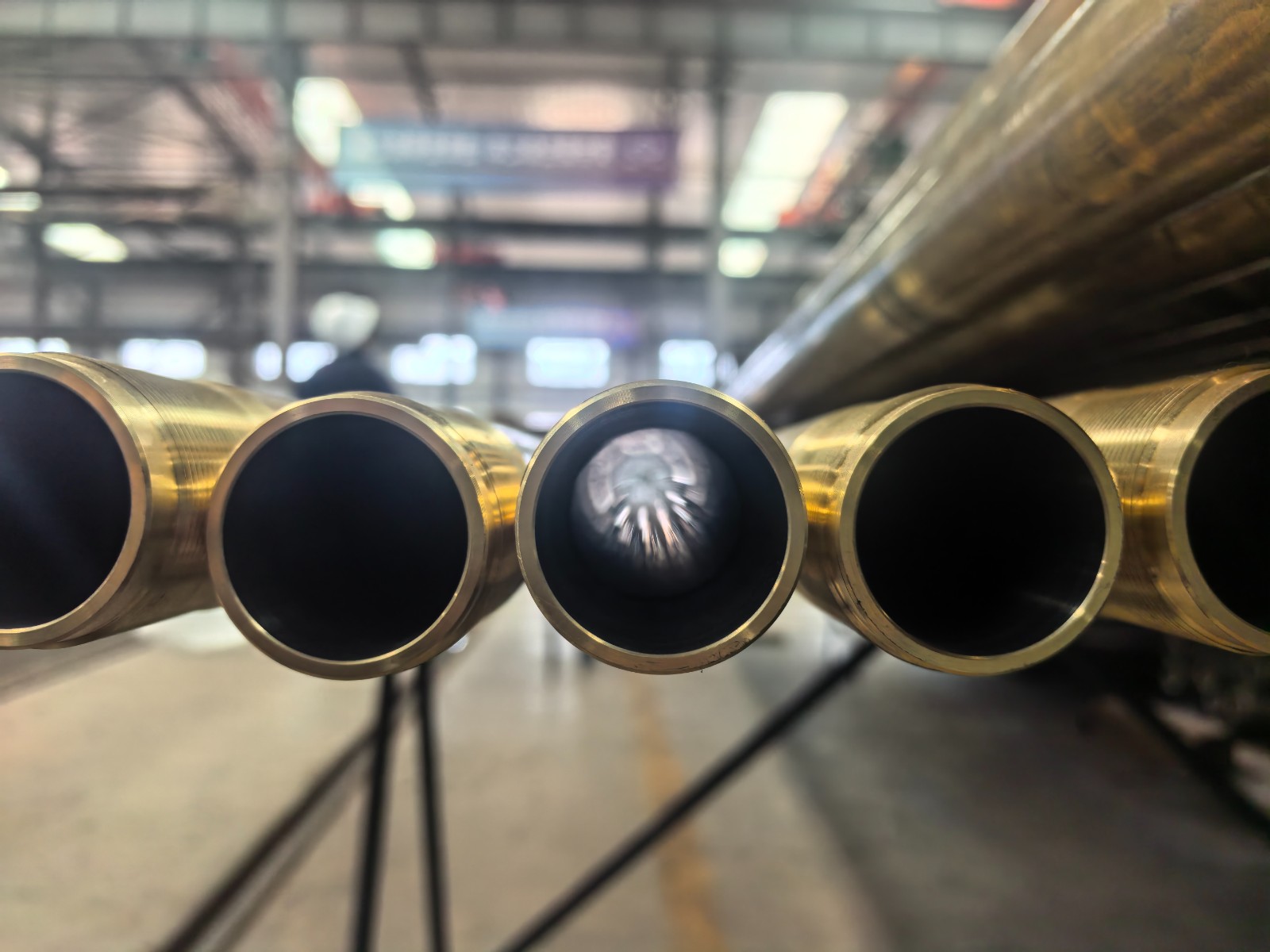

Precision Honing Process: The inner bore of the pump barrel underwent a multi-stage honing process. The inner surface roughness was strictly controlled within the range specified by API standards, thereby minimizing the friction coefficient and significantly extending the service life of the plunger.

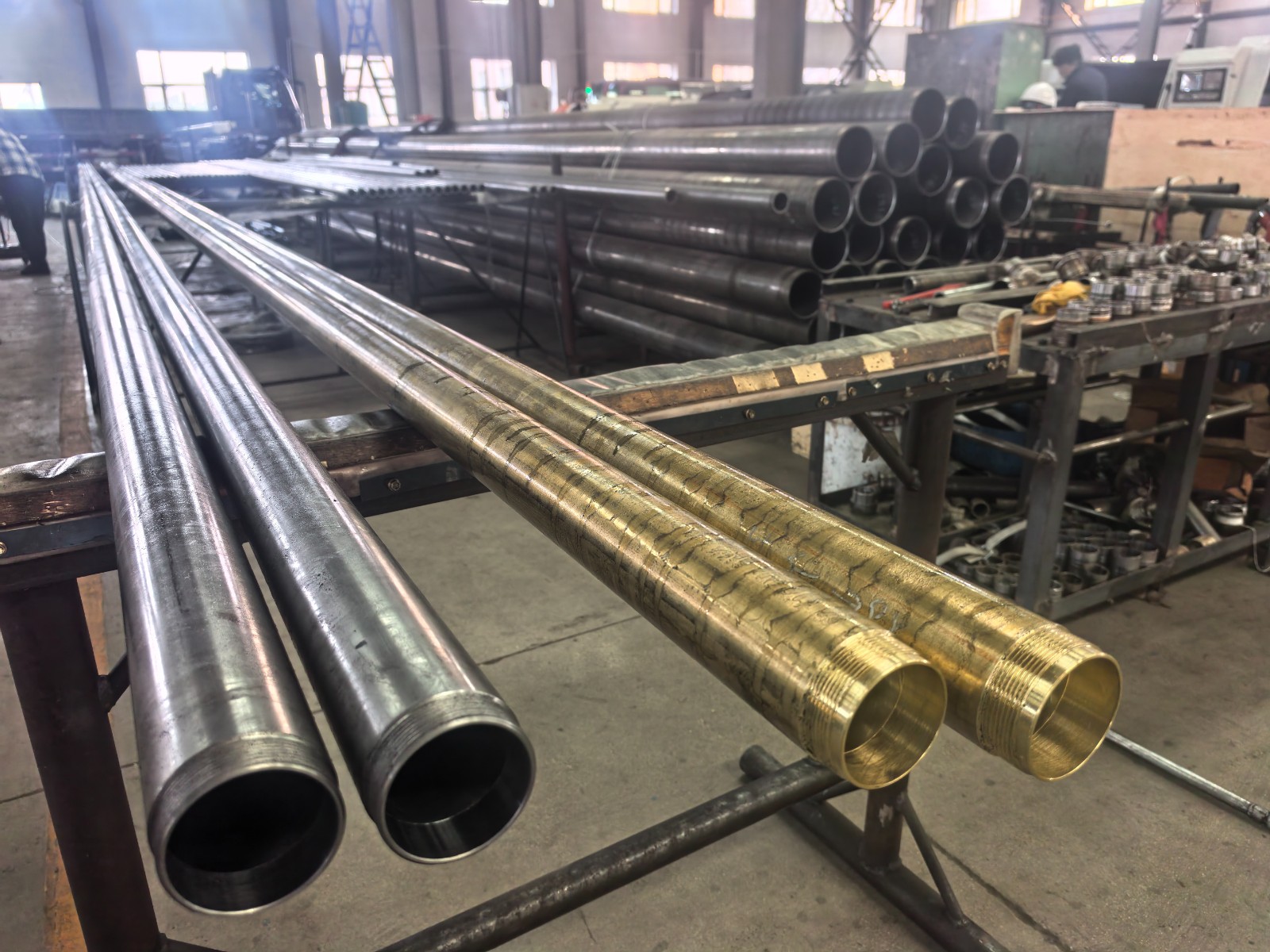

Professional Thread Machining: The threads on the connectors at both ends were precisely machined using CNC equipment. Additionally, the threads were fitted with high-strength black protective sleeves (as shown in the accompanying image) to prevent impact damage during transportation and installation, thereby ensuring reliable sealing integrity during downhole deployment. Customized Specifications: Based on the client's specific requirements regarding well depth and displacement volume, pump barrels with tailored wall thicknesses and lengths were manufactured, thereby optimizing the pump's displacement efficiency.
4. Case Results & Evaluation (Results & Feedback)
Extended Service Life: Following the deployment of this batch of brass pump barrels, the average run life (time between overhauls) of the oil pumps—operating within the same corrosive environment—increased by over 50% compared to the original carbon steel barrels.
Reduced Maintenance Costs: The rate of pump barrel damage caused by corrosion declined significantly, resulting in reduced production downtime and lower expenses for spare part replacements.
Client Feedback: The client highly praised the product's surface finish and craftsmanship, the precision of its internal bore, and its robust performance under extreme operating conditions; furthermore, they expressed their intention to continue implementing this customized solution across other highly corrosive oilfield blocks.
