1. Industry Background and Pain Points:
Operating Conditions: In certain oil-producing regions of Central Asia and North America, crude oil contains significant quantities of fine sand and mineral particles.
Pain Points: Standard carbon steel or chrome-plated plungers often exhibit severe surface scratching and spalling after less than three months of operation. This leads to increased clearance between the plunger and the pump barrel, resulting in significant fluid leakage and a decline in oil production efficiency.
Requirements: Customers require a plunger featuring extremely high surface hardness and exceptional wear resistance to effectively combat frequent "sand-sticking" and abrasion issues.
2. Customized Technical Advantages:
Ultra-Hard Surface Spray Welding: We utilize a nickel-based alloy for surface spray welding, achieving a hardness level of HRC 55–62. This material not only offers superior wear resistance but also provides excellent corrosion protection in acidic environments containing hydrogen sulfide (H2S).
Precision Fit: The plungers shown in the images have undergone high-precision centerless grinding; their outer diameter tolerance is controlled within ±0.005 mm. This ensures that the clearance between the plunger and the pump barrel meets the optimal specifications defined by API, thereby minimizing fluid slippage losses.
Comprehensive Size Coverage: This delivery encompasses a wide range of sizes—from 1.25" to 2.75"—to meet the replacement requirements for various pump models utilized by the customer.
3. Process Transparency and Packaging:
100% Laser Inspection: Prior to shipment, every single plunger undergoes a full-length straightness inspection to ensure uniform wear and prevent eccentric abrasion during deep-well operations.

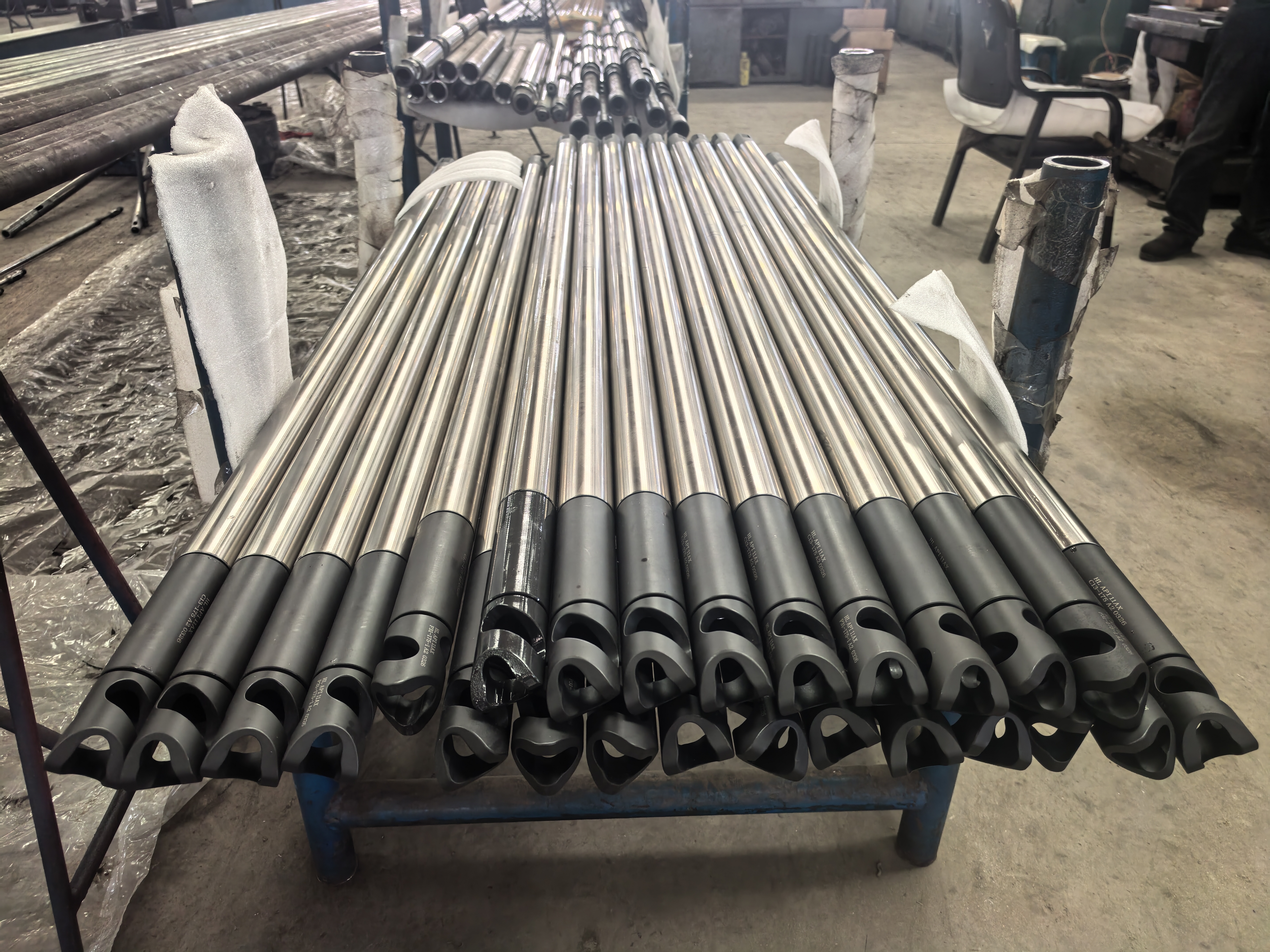

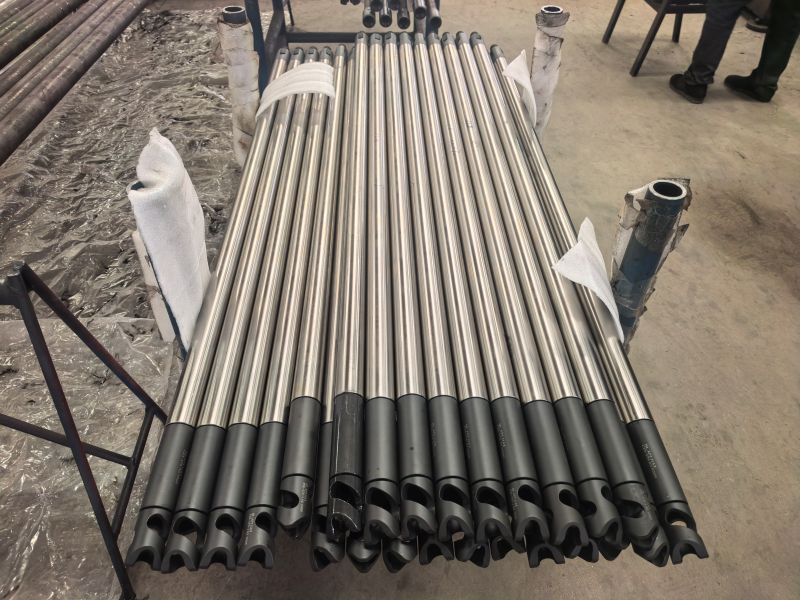

Visualized Quality Control: The images showcase the finished products neatly arranged within our workshop; the surface of each plunger has been coated with a specialized, long-lasting anti-rust lubricant.
Professional-Grade Export Packaging:
Individual Protection: Each plunger is fitted with a protective plastic sleeve to safeguard its threads and surface finish.

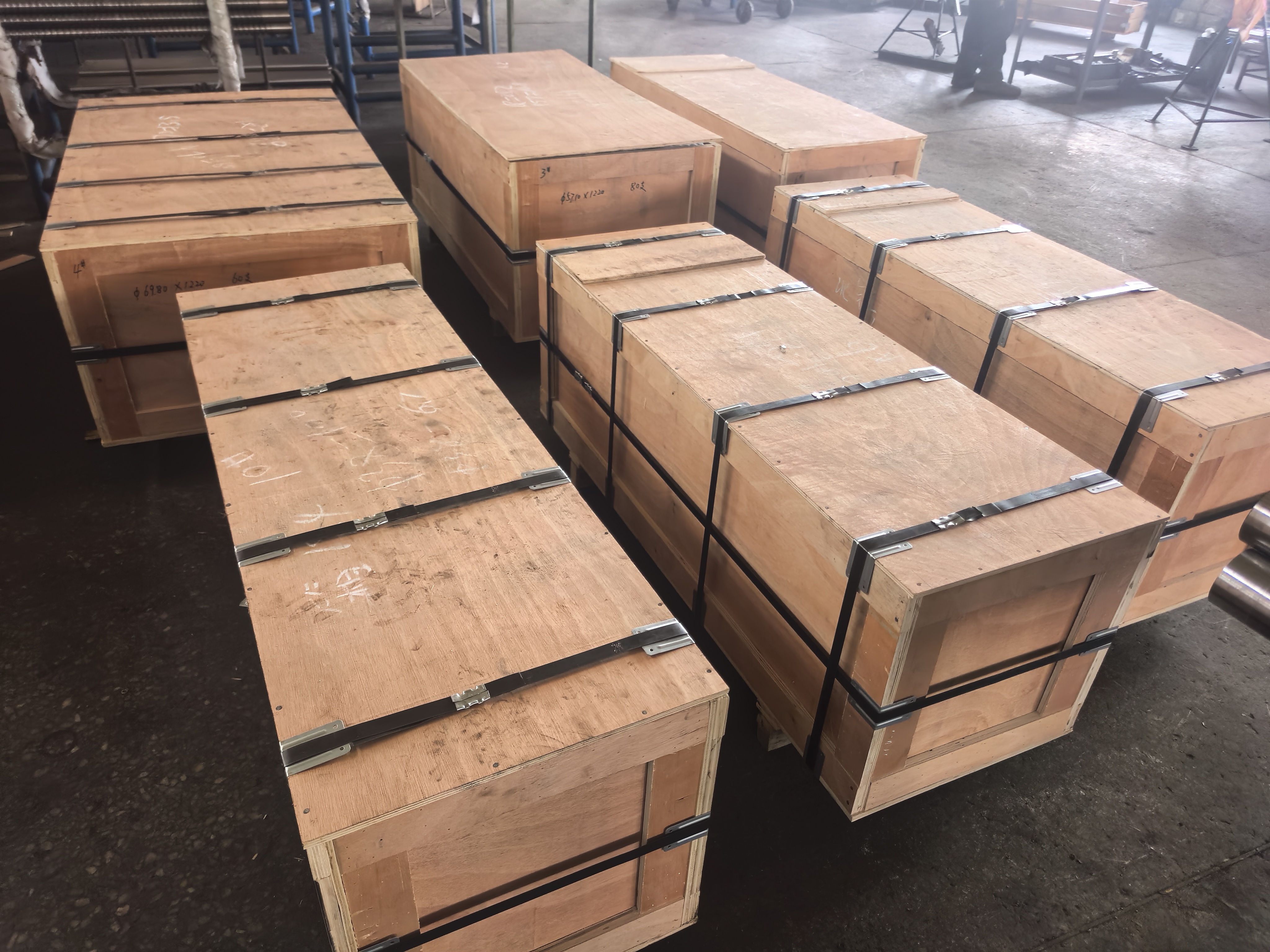

Fumigated Wooden Crates (as pictured): Optimized for maritime transport environments, our packaging utilizes multi-layer reinforced wooden crates secured with steel strapping. The interiors are lined with shock-absorbing padding to ensure that these slender plungers remain free from even minute bending deformations during international transit. 4. Customer Value
Doubled Service Life: Data from actual field applications demonstrates that the average service life of this batch of plungers exceeds 2.5 times that of standard chrome-plated plungers.
Cost Reduction: By reducing workover frequency by 50%, these plungers save customers approximately $12,000 in annual operating costs per well.
Rapid Turnaround： Thanks to our robust plunger inventory and advanced semi-finished product processing capabilities, the entire order of 1,000 plungers—from order confirmation to packing and shipment—was completed in just 15 days.
