On-Off Tool

BrandDongSheng
Product originLiaoning, China
Delivery time8-10 weeks
Supply capacity20,000 units/year

1. The on off tool packer is made of high-quality materials, and the key areas of the on off tool packer are made of thicker materials and surface hardened to achieve excellent strength. 2. The on off tool packer has special features of fatigue resistance, corrosion resistance, and wear resistance, reducing friction. 3. The on off tool packer enables workers to separate the rod column from the pump without stripping it while leaving the pump downhole, which is simple and convenient.

Introduction of On Off Tool Packer:

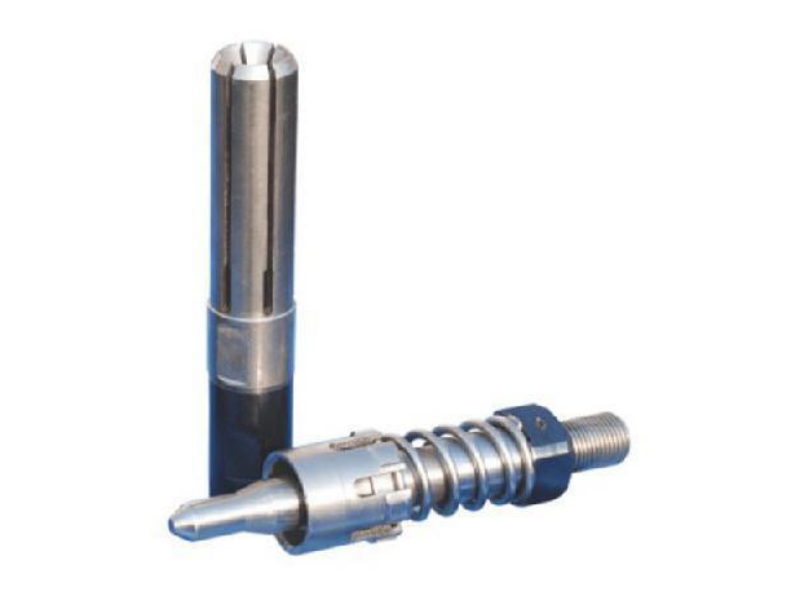

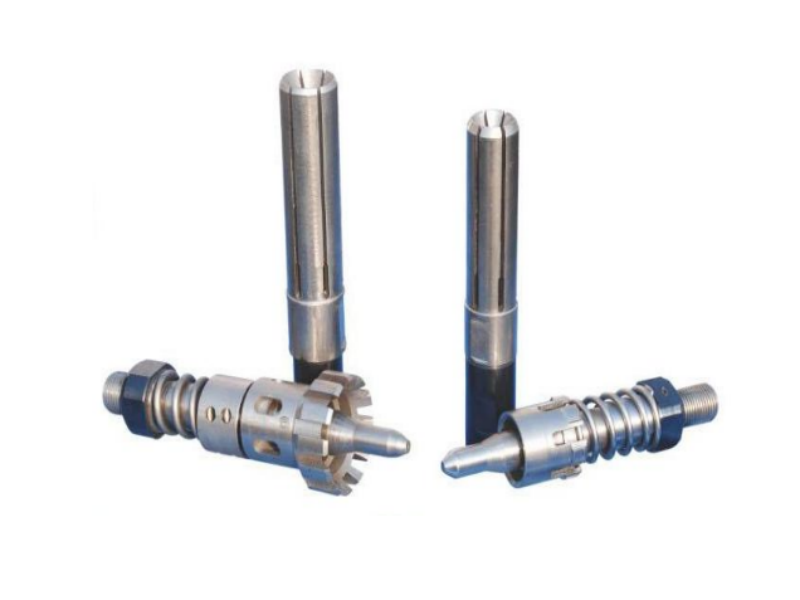

The sucker rod on-off tool can engage and disengage the sucker rod at or above the bottomhole pump. The sucker rod on-off tool is mainly suitable for the working conditions of small-diameter and large-diameter pumps, and can also be used for special pumps. The disconnector of the sucker rod on-off tool consists of an upper assembly, which includes a fixed distal joint and a spring, a stopper, a distribution sleeve, a spring and a lower joint, and the lower assembly and the telescopic joint are composed of three parts.

On off tool packer

Features of Sucker Rod On-Off Tool:

1. The sucker rod on-off tool has a reasonable structure and compact pipe diameter, which can enter the pump barrel without increasing the operation process.

2. The on off tool for oil and gas adopts a self locking structure, with a high success rate of connection and disconnection, and the operation of the disconnector is simple and reliable.

3. The on off tool for oil and gas adopts high-quality spring steel and all-steel structural steel, with small impact force and disengagement force, and the on off tool for oil and gas has a large conveying capacity.

4. The on off tool for oil and gas adopts chemical plating and anti-corrosion treatment to extend the service life of the disconnector.

Sucker rod on-off tool

FAQ:

1. What is the on off tool for oil and gas? What are the main structures of the off tool assembly?

The off tool assembly mainly consists of a distal joint and a spring, a stopper, a distribution sleeve, a spring and a lower joint. The off tool assembly as a whole can be lowered into the tubing pump barrel with the sucker rod, and the operation is simple.

2. Does the off tool assembly perform well in deep wells or inclined wells?

Yes. The off tool assembly has the characteristic of swinging around the fixed device, and the disconnector is suitable for various working environments.

3. Can your off tool assembly be customized?

Yes, our off tool assembly can be customized according to your needs.

Service Guarantee:

Our company will regularly visit to understand the operation of the sucker rod on-off tool equipment and provide maintenance suggestions and accessories support in a timely manner. We can provide personalized technical solutions for different oilfield working conditions to help customers improve mining efficiency. We always put customers' demands first and create products that satisfy customers.

On off tool for oil and gas

Tags:

Are you a Factory or a Trader?
We are the manufacturer. As a leading pump manufacturer in China, it is committed to designing, developing, manufacturing and supplying oilfield products, such as sucker rod pumps, special sucker rod pumps and downhole tools, etc.
Do you Have a Quality Control System?
Yes, we are ISO 9001 quality management system certified and licensed to use API 11AX certificate.
Can we Provide Customized Service?
Yes, we can customize it according to your needs.
What can you Buy from us?

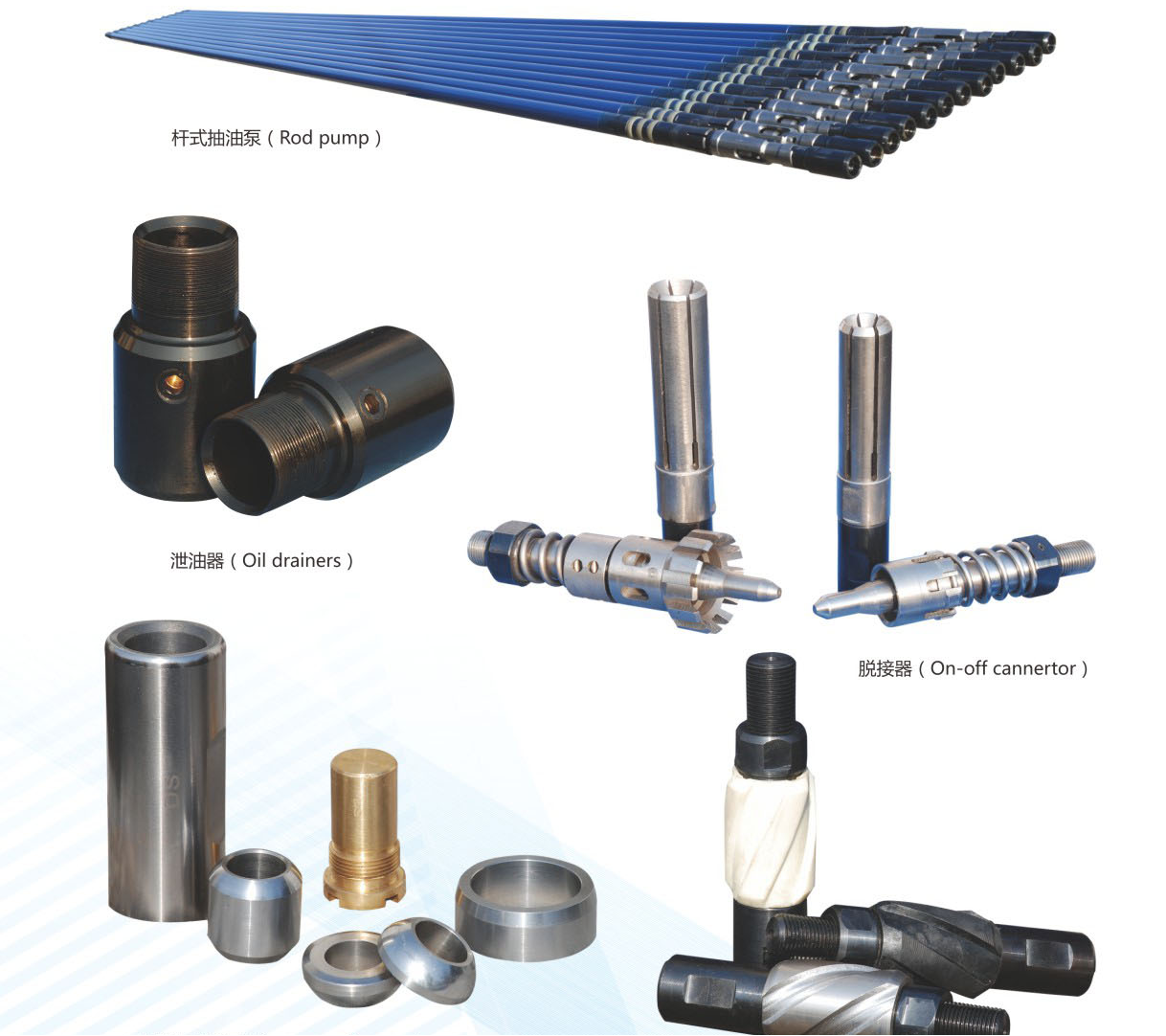

The company covers 100 kinds of rod pump products and accessories, such as downhole tubing pumps, long plunger sand control pumps, drains, centralizers, metal spray plungers, alignment, and unified grinding.
How about the Production and Delivery Time?
The production time mainly depends on the product and quantity. After you place an order, we will produce as soon as possible. The delivery time depends on your country and port.（It usually takes 8-10 weeks.）
What are the Specific Dimensions and Properties of the Sucker Rod pump?
The sucker rod pump has a plunger length (ft) of 3, a barrel length (ft) of 8, a connecting pipe size (in) of 2 7/8TBG, and a connecting rod size of CYG19, which complies with API 11AX and ISO9001 standards and can be customized.
What is the Diameter of the Plunger Used of Downhole Tubing and Rod Pumps?
The diameter is 1.50 inches (38.1 mm)
What is the Purpose of the Sucker Rod Pump?
The sucker rod pump lifts the crude oil in the underground oil layer to the surface through the reciprocating motion of the sucker rod column, which is suitable for vertical wells, inclined wells and shallow and medium-level oil wells.
