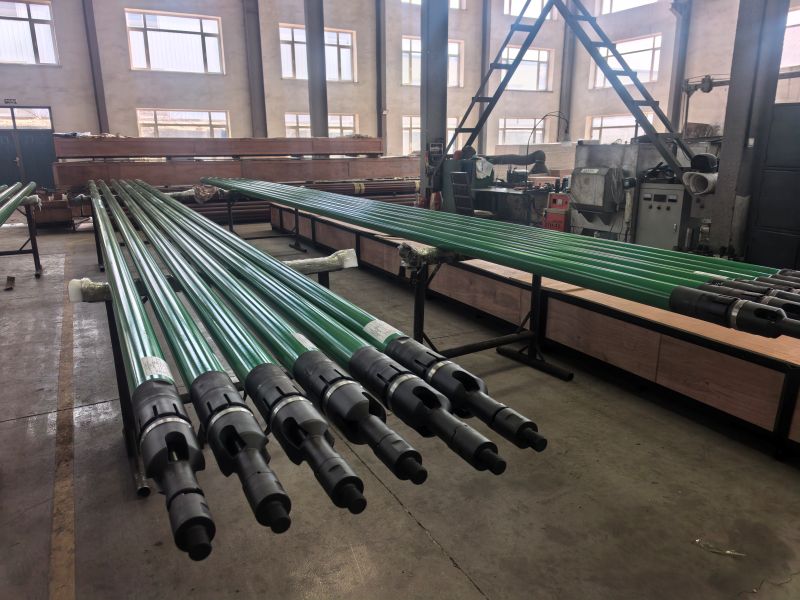

The API Type Tubing Pump, with its compact structure, strong displacement adaptability, and stable operation, is widely used in mechanical oil production systems in onshore oil fields and constitutes an important component of modern artificial lift technology systems.
Basic Structural Composition of the API Type Tubing Pump
The API Type Tubing Pump is a typical structural form within the rod pump system, primarily consisting of core components such as the pump barrel, plunger assembly, standing valve, and traveling valve.
Unlike the insert-type rod pump, the pump barrel of the API Type Tubing Pump is directly connected to the tubing string and run into the wellbore together with the tubing. This results in an integrated downhole structure, reducing the use of additional connecting components.
Working Principle of the API Type Tubing Pump
The working principle of the API Type Tubing Pump relies mainly on the surface pumping unit driving the sucker rod in a reciprocating up-and-down motion, which in turn drives the downhole plunger to move periodically inside the pump barrel, achieving continuous fluid pumping.
During the plunger's upstroke, the traveling valve closes and the standing valve opens, allowing well fluid to enter the pump barrel. During the downstroke, the standing valve closes and the traveling valve opens, lifting the fluid to the space above the plunger. By repeating this process continuously, crude oil can be transported to the surface without interruption.
What Are the Structural Characteristics of the API Type Tubing Pump?
The most distinctive feature of the API Type Tubing Pump is that the pump barrel is directly connected to the tubing, allowing for an increased pump diameter and thus enhancing the single-stroke displacement capacity.
Because there is no restriction from an external working barrel structure, the API Type Tubing Pump can generally adopt a larger pump diameter design, making it more suitable for oil wells with relatively high fluid production rates.
Therefore, under mechanical oil production conditions requiring larger displacement, the API Type Tubing Pump offers significant advantages.
Simple Structure Reduces Failure Rate
Due to its simple structure, the API Type Tubing Pump is more convenient in terms of equipment maintenance, component replacement, and on-site repair. At the same time, it improves operational stability and reduces long-term maintenance costs.
For mature oil fields, these characteristics—reliable operation and long maintenance intervals—hold high application value.
Analysis of the Reasons for the Continued Application of the API Type Tubing Pump
1. Mature Maintenance System
The API Type Tubing Pump has benefited from the establishment of complete industry standards and maintenance systems. Whether in terms of component procurement, on-site maintenance, or technical services, a high degree of maturity has been achieved, helping oilfield enterprises reduce the risk of well downtime.
2. Wide Adaptability to Operating Conditions
| Application Scenario | Main Function |
| Shallow Wells | Achieve large-displacement rapid lifting, increasing daily fluid production per well. |
| Deep Wells | Reliably lift well fluid to the surface against high pressure. |
| Low-Viscosity Crude Oil | Control slippage leakage and maintain high pump efficiency. |
| High-Water-Cut Oil Wells | Operate for extended periods in water without significant wear, maintaining stable lifting capacity. |
3. Long-Term Operational Economy
The long-term operating cost of equipment is often more critical than the initial procurement cost. The API Type Tubing Pump has a relatively simple structure, fewer failure points, and longer maintenance intervals, thereby reducing the labor and equipment costs associated with frequent tripping operations.
Against the global backdrop of a sustained emphasis on stable production, high efficiency, and energy conservation in oil and gas development, the API Type Tubing Pump, with its proven and reliable operating principle and stable, efficient structural characteristics, remains an indispensable piece of equipment in the field of mechanical oil production.
With the continuous integration of wear-resistant materials, intelligent control, and automated monitoring technologies, traditional tubing pumps are gradually being upgraded from "basic mechanical equipment" to "intelligent oil production systems."
