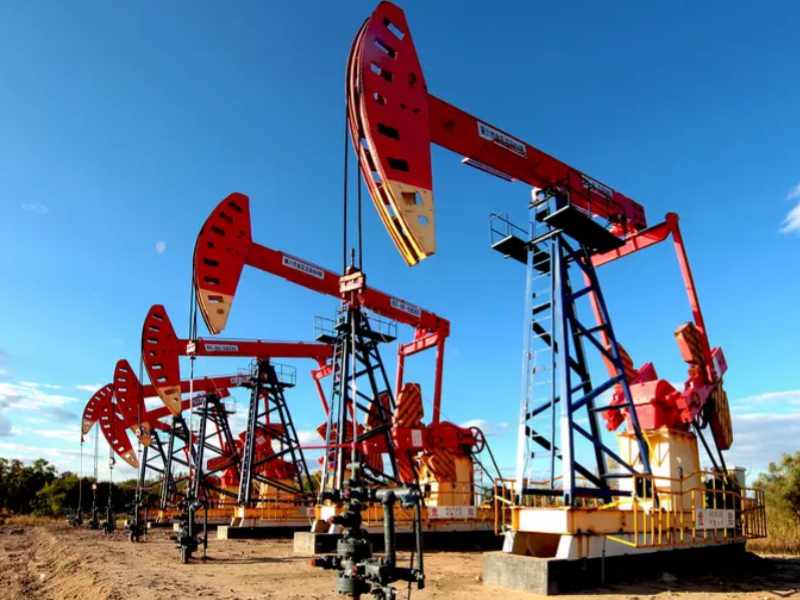

Introduction: The Critical Role of Artificial Lift in Modern Oilfields
In the high-stakes environment of global oil extraction, the efficiency of artificial lift systems determines the thin line between a profitable well and an operational liability. As reservoirs mature, the industry increasingly relies on the API rod pump to sustain production. For B2B buyers—importers, wholesalers, and OEM partners—understanding the nuances of these components is vital. This guide provides a deep dive into the technical excellence of the Insert rod pump, its selection criteria, and how it addresses the most grueling downhole challenges.
1. Defining the Concept: What is an API Rod Pump?
An API rod pump, specifically the Insert rod pump configuration, is a reciprocating positive displacement pump designed to the rigorous standards of API Spec 11AX. Unlike tubing pumps, where the barrel is integrated into the tubing string, the insert pump is a self-contained unit.
The Mechanics of the Insert Rod Pump
The entire assembly—comprising the barrel, plunger, and valves—is lowered into the well through the tubing string on the sucker rods. It "seats" into a mechanical or cup-type seating nipple. This design allows the pump to be installed or pulled for maintenance without ever disturbing the tubing string, offering a massive advantage in operational flexibility.
2. Technical Advantages: Why Technical Buyers Prefer DS Rod Pumps
When we discuss the API rod pump, professional expertise and manufacturing precision are non-negotiable. At DS Rod Pump, our engineering authority is built into every component.
Precision-Engineered Metallurgy
Our Insert rod pump barrels are available in various materials to combat specific downhole threats:
Chrome-Plated Steel: High hardness for resisting abrasive wear from sand.
Nickel-Carbide Coating: Superior protection in corrosive H2S and CO2 environments.
Spray Metal Plungers: Utilizing a proprietary thermal spraying process to ensure a low-friction, high-durability surface.
Volumetric Efficiency
By maintaining a plunger-to-barrel clearance tolerance of 0.001 to 0.005 inches, our pumps minimize "fluid slippage." This precision engineering ensures that every stroke translates into maximum fluid lift, directly impacting the well's ROI.
3. Addressing Oilfield Pain Points: Scenario-Based Solutions
Every B2B buyer looks for solutions to specific field problems. Here is how the API rod pump addresses common "pain points."
Scenario A: High Workover Costs
The Pain: Pulling thousands of feet of tubing to replace a pump is expensive and time-consuming.
The Solution: The Insert rod pump allows for "pump-only" retrieval. You pull the rods, swap the pump, and resume production, saving up to 70% on workover time compared to tubing pumps.
Scenario B: Sand Accumulation and Abrasion
The Pain: Sand settling around the pump often leads to "stuck" assemblies.
The Solution: Utilizing a Stationary Barrel, Top Anchor (RHAM) configuration. By anchoring at the top, fluid flow keeps sand in suspension and prevents it from settling between the pump and the tubing.
Scenario C: Deep Well Challenges
The Pain: High hydrostatic pressure can cause thin-walled barrels to burst or collapse.
The Solution: Heavy-wall barrels (RH series) are designed specifically for deep wells, providing the structural integrity needed to withstand extreme pressures without deformation.
4. Selection Essentials: How to Choose the Right API Rod Pump
Selecting a pump isn't just about size; it's about matching the tool to the environment.
RHAM vs. RHBM: Which Anchor is Best?
RHAM (Top Anchor): Best for sandy wells. It prevents sand from settling around the pump barrel.
RHBM (Bottom Anchor): Best for deep wells. Anchoring at the bottom prevents the barrel from "breathing" (stretching) during the upstroke, which improves compression.
Material Selection Strategy
Corrosive Wells: Specify stainless steel or nickel-plated components.
Gassy Wells: Opt for pumps with high-compression valves and specialized valve cages to prevent gas lock.
5. Technical Parameters and Engineering Suggestions
For B2B wholesalers and OEM clients, technical specifications are the foundation of a purchase order. We suggest the following standard parameters for optimal performance:
Parameter | Suggestion for Standard Wells | Suggestion for Deep/Harsh Wells |
Barrel Type | Thin Wall (RW) | Heavy Wall (RH) |
Plunger Surface | Hard Chrome Plated | Spray Metal (SM) |
Valve Balls/Seats | Stainless Steel | Tungsten Carbide / Ceramic |
Plunger Fit | 0.002" - 0.003" | 0.004" - 0.005" (for heavy oil) |
6. Common Mistakes in Rod Pump Operation
Avoid these frequent errors to ensure the longevity of your Insert rod pump:
Improper Seating: If the seating nipple is dirty or damaged, the pump won't seal, leading to immediate fluid loss.
Mismatched Stroke Length: Using a stroke length at the surface that exceeds the barrel's length will cause the plunger to "hit the bottom," destroying the valves.
Ignoring Fluid Chemistry: Using a standard carbon steel pump in a high-CO2 environment will lead to pitting corrosion within weeks. Always match metallurgy to the fluid analysis.
7. The Consumer Perspective: 10 Critical Questions & Answers
Q1: Is an Insert rod pump more expensive than a tubing pump?
A: The initial cost is slightly higher, but the long-term savings in workover costs make it much more economical.
Q2: What is the maximum depth for an API rod pump?
A: With heavy-wall barrels and high-strength sucker rods, these pumps can exceed 10,000 feet.
Q3: Can I use an insert pump in a horizontal well?
A: Yes, provided you use rod guides to prevent friction and ensure the pump is seated in the vertical or slightly deviated section.
Q4: How do I identify a pump from its API code?
A: The code (e.g., 20-125-RHAM) tells you the tubing size, pump bore, and pump type (Rod, Heavy wall, Top Anchor).
Q5: What is the lead time for OEM branding?
A: Typically 6–8 weeks, depending on the material requirements and volume.
Q6: Does temperature affect the plunger fit?
A: Yes. In high-temp wells, metals expand. We calculate "thermal expansion" to provide a looser fit that seals perfectly at downhole temperatures.
Q7: Are parts interchangeable?
A: Since we adhere to API 11AX, our parts are interchangeable with any other certified API manufacturer.
Q8: How often should the pump be serviced?
A: This depends on the well environment. In clean wells, they can run for years; in sandy wells, service intervals may be 6–12 months.
Q9: Can these pumps handle high viscosity?
A: Yes, by using larger valves and a looser plunger fit to allow heavy oil to move.
Q10: What is the benefit of a "Stationary Barrel"?
A: It is more robust and less prone to vibration compared to traveling barrel pumps.
Product FAQ: API Rod Pump Technical Support
Q: What makes the "Insert" design superior for remote locations?
A: In remote oilfields, mobilizing a workover rig to pull tubing is a logistical nightmare. The Insert rod pump can be serviced using a smaller, more mobile pulling unit, making it the preferred choice for remote B2B distributors.
Q: How does DS Rod Pump ensure the quality of its API rod pump?
A: Every pump undergoes vacuum testing of the valves, laser alignment of the barrels, and a 100% inspection of API threads to ensure zero-defect delivery to our global partners.
Q: Can you customize the plunger length for specific stroke requirements?
A: Yes. We offer plungers ranging from 2 feet to 6+ feet to accommodate different surface pumping unit stroke lengths and to prevent "pump hitting."
Conclusion: Partnering for Long-Term Production Success
The API rod pump remains the world’s most reliable artificial lift solution due to its simplicity, versatility, and the cost-saving nature of the Insert rod pump design. For the B2B buyer, success depends on sourcing from a manufacturer that understands the intersection of material science and field reality.
In conclusion, by focusing on API 11AX compliance, selecting the correct anchor type (RHAM vs. RHBM), and utilizing high-performance metallurgy, you can significantly reduce the total cost of ownership for your wells. The right pump doesn't just lift oil—it lifts your bottom line.
